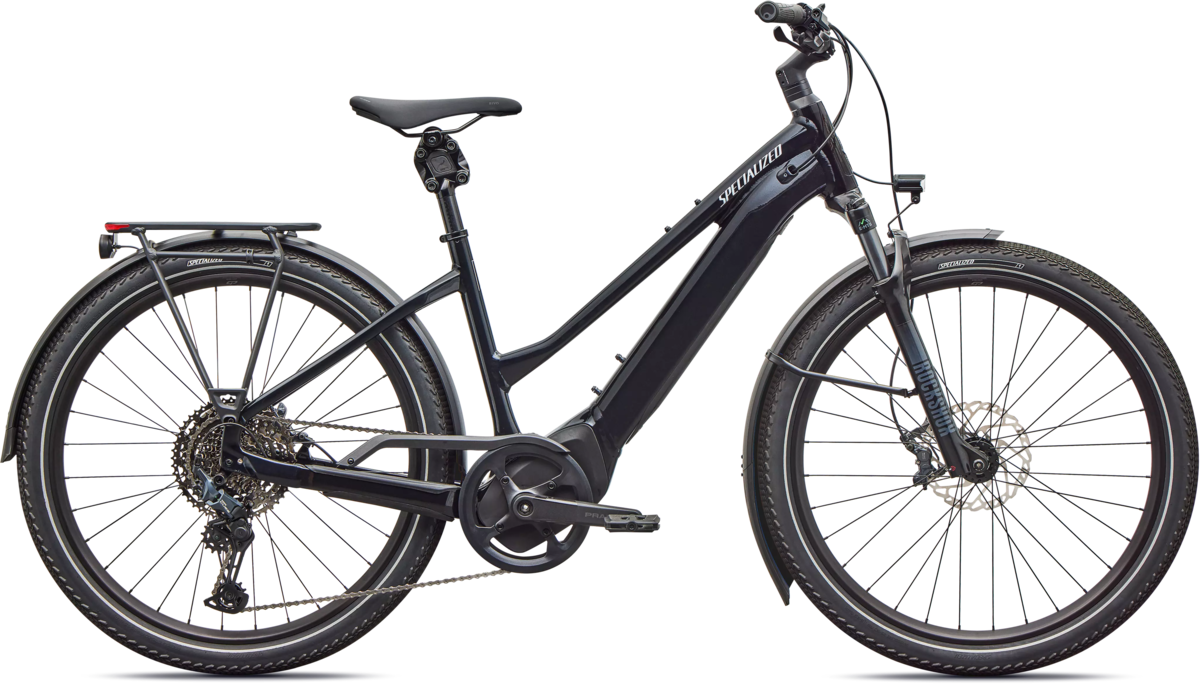

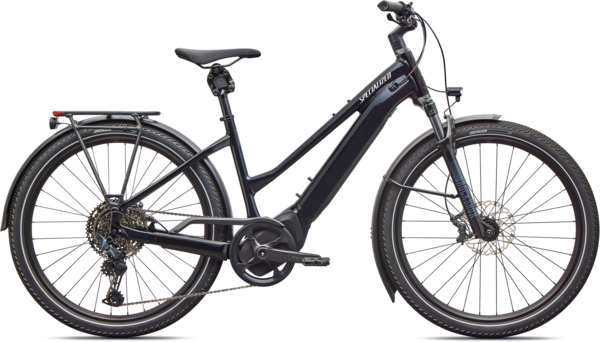

Specialized Turbo Vado 5.0 Step-Through

Specialized Turbo Vado 5.0 Step-Through
  • Color: Gloss Castblack / Satin Silver Reflective
$5,000.00
Color: Gloss Castblack / Satin Silver Reflective
Size: Small
Wheel Size: 650B
Please select options Unavailable
Bicycles, bicycling products, and some fitness products can be picked-up at a BGI store.

Details

Consider Vado your high-performance transportation bike, getting you where you’re going with an unmatched combination of speed, reliability, and confidence. Whether you load it up with your stuff, or jump on and go, commute to work, or ride to the gym, Vado’s full power and huge range will get you from ‘point A’ to ‘point B’ ASAP.

The Specialized Vado has everything you need for e-powered transport. It brings a balanced nature to the way it handles and superior levels of comfort. This is a true class leader of its type.

TURBO: The heart of the Vado is its Turbo technology, an advanced and integrated electric bike system that delivers an unequaled combination of power, natural feel, anti-theft functions, training tips, and a full-function bike computer.

POWERFUL: It’s you, just faster — it’s 4x You. The Turbo Full Power system senses the force you apply to the pedals and naturally quadruples it for an experience that makes getting up any hill or to any destination no sweat. Literally.

COMFORTABLE AND CONFIDENT: Body position and handling are optimized to deliver unsurpassed riding comfort, confidence, and control. Powerful hydraulic disc brakes reign in your speed, while larger tires provide maximum traction for turning and stopping.

SMOOTH: Stay comfortable in the saddle with an 80mm front suspension fork, higher volume tires, and a plush suspension seat post that smooths harsh bumps from points A to B.

SECURE: Vado has anti-theft lock built right into the bike. Prevent would-be bike thieves by disabling the motor with a press of a button so no one can turn on the motor without your phone connected to the Specialized app or your personalized pin. The Vado’s battery locks in the bike or can be easily taken with you. And if anyone tries to move your bike an alarm will sound. Beat it, thieves.

The speed limit at which the motor will stop supporting may vary significantly by region and is based on local requirements. It may also affect range: a higher speed limit may result in less range.

- Turbo Full Power 2.2 motor and 710Wh battery offer an unparalleled riding experience, providing a smooth, seamless, and shockingly quiet amplification of your efforts, up to 28 mph. The integrated controller responds to your pedal inputs resulting in intuitive amplification of your efforts with an incredibly natural feel.

- MasterMind and Specialized app - The MasterMind display reveals all relevant info about your ride and allows real-time tuning of support levels. MasterMind seamlessly integrates with the Specialized app for range optimization tools, advanced tuning, on-ride diagnostics, and more.

- Proven Smooth Efficiency - We designed a custom testing mechanism to analyze bumps at even the smallest frequency to increase comfort and vision. That precision, paired with a suspended seatpost, higher volume tires, and an 80 mm suspension fork, will flatten roads before your eyes.

- Turbo System Lock - Use the Specialized app to disable your bike’s motor and activate the motion sensor alarm. Once locked, the motor cannot be enabled again except by the owner.

- Garmin Radar - An integrated Garmin Radar sensor lets you know when traffic is coming up behind you. Garmin’s Radar technology can detect cars up to 140 meters away. MasterMind will give riders a visual, audible, and haptic alert of an approaching vehicle’s relative distance and rate of speed.

- Fully Integrated Removable and Lockable Downtube Battery - Easy to charge, easy to secure.

- Equipped with DRYTECH Fenders, LED front and rear lights, and 27kg capacity rear HD Rack. The rear rack is compatible with child bike seats, and the bike is also rated to pull a thru-axle trailer.

- Long-Range - With a ride-anywhere range, go up to 75 miles (120 km) or 5.5 hours on a single charge (eco mode).

Sizes:
Frame SizeSmallMediumLargeX-Large
Crank Length (mm) 170 170 170 170
Handlebar Width (mm) 680 680 680 680
Stem Length (mm) 60 60 75 75
Saddle Width (mm) 155 155 155 155
Seatpost Length (mm) 375 375 375 375
Stack (mm) 625 639 652 676
Reach (mm) 423 444 464 481
Headtube Length (mm) 135 150 165 190
Headtube Angle 68° 68° 68° 68°
BB Height (mm) 285 285 285 285
BB Drop (mm) 70 70 70 70
Trail (mm) 96 96 96 96
Fork Length (full) (mm) 480 480 480 480
Fork Rake/Offset (mm) 44 44 44 44
Front Center (mm) 699 724 750 777
Chainstay Length (mm) 470 470 470 470
Wheelbase (mm) 1160 1186 1212 1239
Toptube Length (horizontal) (mm) 585 615 645 675
Bike Standover Height (mm) 618 617 617 626
Seat Tube Length (mm) 400 450 460 500
Seat Tube Angle (Virtual) 75.5° 75° 74.5° 74°
Sizes:
Frame SizeRider Height (cm)Rider Height (in)
Small 158 - 165 5'1" - 5'5"
Medium 165 - 178 5'5" - 5'10"
Large 178 - 185 5'10" - 6'1"
X-Large 185 - 193 6'1" - 6'4"

Specs

Frame E5 Aluminum, mid-drive motor, fully integrated & lockable downtube battery, internal cable routing, wheel lock mount, and front rack compatible
Fork Rockshox Recon Silver RL, 80mm travel, Motion-Control, fender-mounts
Rims 650b disc, double-wall alloy, pinned, 32h
Hubs Front: Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 32h
Rear: Specialized alloy rear hub disc, sealed cartridge bearings, 6-Bolt, 12X148mm thru-axle, 28h, HD Steel Fhb
Spokes DT Swiss Elemental
Tires Pathfinder Sport Reflect, 650Bx2.3
Crankset Custom alloy forged crankarms
Chainrings 40 Teeth with Chain Retention Technology
Shifters Shimano, SL-U8000-11IR, CUES, Right, 11-Speed Rapidfire, W/O Optical Gear Display, I-Spec Ii
Rear Derailleur Shimano, RD-U8000, CUES, Gs 11-Speed, Top Normal, Shadow Plus Design, Direct Attachment
Cassette/Freewheel Shimano, CS-LG400-11, CUES, 11-Speed, 11-50T
Chain Shimano LG500
Brakes Front: Shimano, CUES, BL-U8000, Br-U8020, Sm-Ma-F180P/P2
Rear: Shimano, CUES,BL-U8000, Br-U8020
Handlebars Specialized, alloy, 15-degree backsweep, 46mm rise, 31.8mm
Tape/Grips ERGON, GA30-S Custom, 134.8mm Length
Stem Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp
Seatpost Cane Creek, Thudbuster St 30.9 mm
Saddle Bridge Sport, Steel rails, 155mm
Pedals Specialized Commuter w/ grip tape & reflectors
Accessories & Extras Integrated Garmin Radar, with custom information displayed directly on the Mastermind TCD
Lezyne, Ebike Power Stvzo E450+, 450 Lumen Headlight, 160Cm Wire, With Reflector
Spanninga, Stvzo, Commuter Glow TaillightWith Brake XEr
Turbo System Lock
Specialized rack, MIK HD interface, built-in pannier mounts, 27kg max load
Specialized DRYTECH fenders, 65mm width, aluminum fenderstay
Specialized brass bell
Specialized Chain Cover
Motor Specialized 2.2, 90Nm torque, custom tuned motor, 250W nominal
Battery Specialized U2-710, integrated battery, state of charge display, 710Wh, UL
Controller/Display MasterMind TCD, w/handlebar remote, built-in anti-theft feature, Bluetooth® connectivity, customizable display pages
Charger Custom charger, 42V4A w/ Rosenberger plug, 100-240V

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Gloss Castblack / Satin Silver Reflective / Small / 650B 196625268052 95026-3902 VAD21959123S
