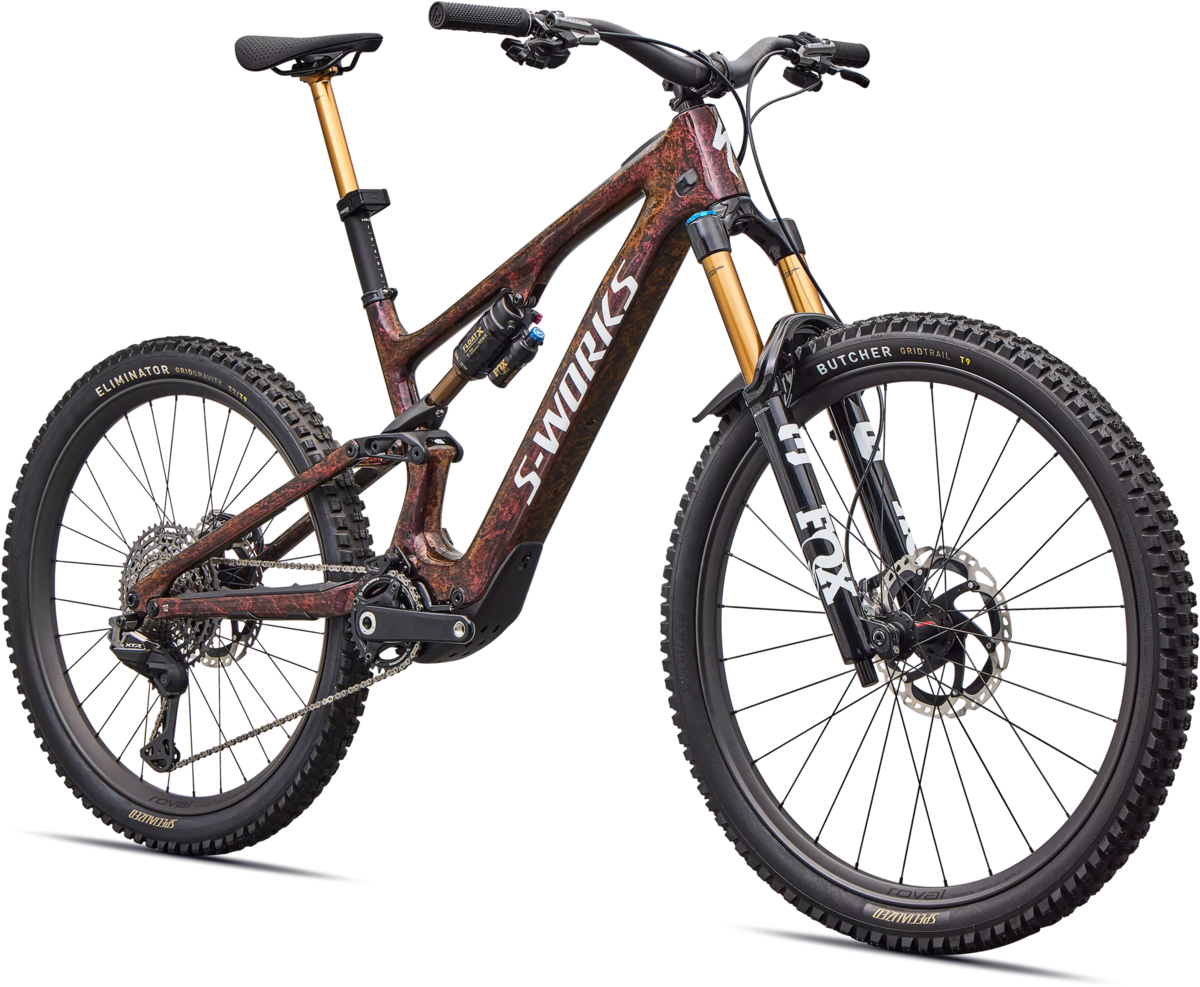

Specialized S-Works Turbo Levo SL Di2
Details
With its unmatched combination of lightweight, ride quality, and supernatural amplification, the Levo SL delivers the best ride, amplified. Compare it to anything out there, with a motor or without, and we think you’ll agree—Levo SL is The Ultimate Trail Bike
| Frame Size | S1 | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|---|
| Crank Length (mm/in) | 165 / 6.50 | 165 / 6.50 | 165 / 6.50 | 165 / 6.50 | 165 / 6.50 | 165 / 6.50 |
| Handlebar Width (mm/in) | 780 / 30.71 | 780 / 30.71 | 800 / 31.50 | 800 / 31.50 | 800 / 31.50 | 800 / 31.50 |
| Stem Length (mm/in) | 40 / 1.57 | 40 / 1.57 | 40 / 1.57 | 40 / 1.57 | 40 / 1.57 | 40 / 1.57 |
| Saddle Width (mm/in) | 155 / 6.10 | 155 / 6.10 | 143 / 5.63 | 143 / 5.63 | 143 / 5.63 | 143 / 5.63 |
| Seatpost Length (mm/in) | 125 / 4.92 | 150 / 5.91 | 175 / 6.89 | 200 / 7.87 | 200 / 7.87 | 200 / 7.87 |
| Stack (mm/in) | 609 / 23.98 | 617 / 24.29 | 626 / 24.65 | 635 / 25.00 | 645 / 25.39 | 654 / 25.75 |
| Reach (mm/in) | 405 / 15.94 | 425 / 16.73 | 445 / 17.52 | 470 / 18.50 | 495 / 19.49 | 525 / 20.67 |
| Head-Tube Length (mm/in) | 110 / 4.33 | 120 / 4.72 | 130 / 5.12 | 140 / 5.51 | 95 / 3.74 | 100 / 3.94 |
| Head-Tube Angle (degrees) | 64.6° | 64.6° | 64.6° | 64.6° | 64.6° | 64.6° |
| B-B Height (mm/in) | 343 / 13.50 | 348 / 13.70 | 348 / 13.70 | 348 / 13.70 | 348 / 13.70 | 348 / 13.70 |
| B-B Drop (mm/in) | -34 / -1.34 | -29 / -1.14 | -29 / -1.14 | -29 / -1.14 | -29 / -1.14 | -29 / -1.14 |
| Trail (mm/in) | 132 / 5.20 | 132 / 5.20 | 132 / 5.20 | 132 / 5.20 | 132 / 5.20 | 132 / 5.20 |
| Fork Length, Full (mm/in) | 560 / 22.05 | 570 / 22.44 | 570 / 22.44 | 570 / 22.44 | 570 / 22.44 | 570 / 22.44 |
| Fork Rake/Offset (mm/in) | 42 / 1.65 | 42 / 1.65 | 42 / 1.65 | 42 / 1.65 | 42 / 1.65 | 42 / 1.65 |
| Front-Center (mm/in) | 726 / 28.58 | 752 / 29.61 | 776 / 30.55 | 806 / 31.73 | 835 / 32.87 | 869 / 34.21 |
| Chain-Stay Length (mm/in) | 433 / 17.05 | 432 / 17.01 | 432 / 17.01 | 432 / 17.01 | 432 / 17.01 | 432 / 17.01 |
| Wheelbase (mm/in) | 1158 / 45.63 | 1184 / 46.61 | 1208 / 47.56 | 1238 / 48.74 | 1267 / 49.88 | 1301 / 51.22 |
| Top Tube Length, Horizontal (mm/in) | 560 / 22.05 | 582 / 22.91 | 604 / 23.78 | 631 / 24.84 | 659 / 25.94 | 691 / 27.20 |
| Bike Stand-Over Height (mm/in) | 727 / 28.62 | 763 / 30.04 | 766 / 30.16 | 767 / 30.20 | 773 / 30.43 | 778 / 30.63 |
| Seat-Tube Length (mm/in) | 385 / 15.16 | 385 / 15.16 | 405 / 15.94 | 425 / 16.73 | 445 / 17.52 | 465 / 18.31 |
| Seat-Tube Angle (degrees) | 75.8° | 75.8° | 75.8° | 75.8° | 75.8° | 75.8° |
Specs
| Frame | Levo SL Carbon Frame, Fact 11m Carbon, Carbon shock extension, 150mm travel, adjustable head angle, BB height, and compatible with 27.5 or 29" wheels. |
|---|---|
| Fork | FOX FLOAT 36 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm QR axle, 44mm offset |
| Rear Shock | FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, S2-S6:210x55mm, S1: FOX FLOAT Factory 210x52.5mm |
| Wheels | Front: Roval Traverse HD 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 Hub, 12x148mm, 28h Rear: Roval Traverse HD carbon, 27.5", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG Hub, 12x148mm, 32h |
| Tires | Front: Butcher, GRID TRAIL casing, Gripton T9 compound, 29X2.4 Rear: Eliminator, GRID GRAVITY casing, Gripton T7/T9 compound, 27.5X2.4 |
| Crankset | SRAM Carbon crankset, 165mm, Dub interface |
| Chainrings | Race Face alloy chainring, 104 BCD, 32T |
| Shifters | Shimano XTR Di2 |
| Rear Derailleur | Shimano XTR Di2, 12-speed |
| Cassette/Freewheel | Shimano XTR, 12 Speed, 10-51T |
| Chain | Shimano XTR M9100, 12-speed w/ quick link |
| Brakes | Shimano XTR 9220, 4-piston caliper, hydraulic disc, 180mm rotor |
| Handlebars | Race Face Era Carbon Handlebars, 35mm clamp, back-sweep 8-degrees, up-sweep 5 degrees, 800mm width, S1/S2: 40mm rise, S3-S6: 55mm rise |
| Tape/Grips | Deity Lockjaw Grips |
| Stem | Race Face Turbine R,35mm clamp,40mm length |
| Seatpost | FOX Transfer Neo wireless, 34.9mm, S1: 100mm, S2: 125mm, S3: 175mm, S4-S6: 200mm |
| Saddle | Specialized S-Works Power Mirror, Ti Rails, 143mm/155mm |
| Accessories & Extras | SWAT CC steerer tube integrated tool with chain tool and link |
| Motor | Specialized SL 1.2 Custom Rx Trail Tuned Motor |
| Battery | Specialized SL1-320, fully integrated, 320Wh |
| Controller/Display | Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote |
| Charger | Custom charger, 48V System w/ SL system charger plug |
* Subject to change without notice.
